DATA SHEET

  • Model name: FD20
  • Working width: up to 3 meters
  • Area coverage: up to 20 ha per season and crop
  • Row spacing: Configurable from 22.5 cm to 75 cm
  • Tools: Configurable from 4 to 8 active rows and 4 to 8 passive rows
  • Cultures: sugar beets, onions, rapeseed, various vegetables and herbs
  • Speed: max. 950 m / h
  • Incline: max. 8% incline and max. 6% side slope
  • Seed hopper: 6-litre capacity
  • Weight: 900 kg including batteries (4 x 35 kg additional weights available)
  • Working temperature: 0 - 40 ° C
  • Storage temperature: -10 - 50 ° C
  • Solar cell capacity: 1.6 kW
  • Battery capacity: 4.8 kWh
  • Drive motors: 2 x 400 W
  • Navigation and communication: RTK and cellular or radio
  • Material: stainless steel: AISI 304, plastic: carbon fibre reinforced nylon
  • Degree of protection: IP65

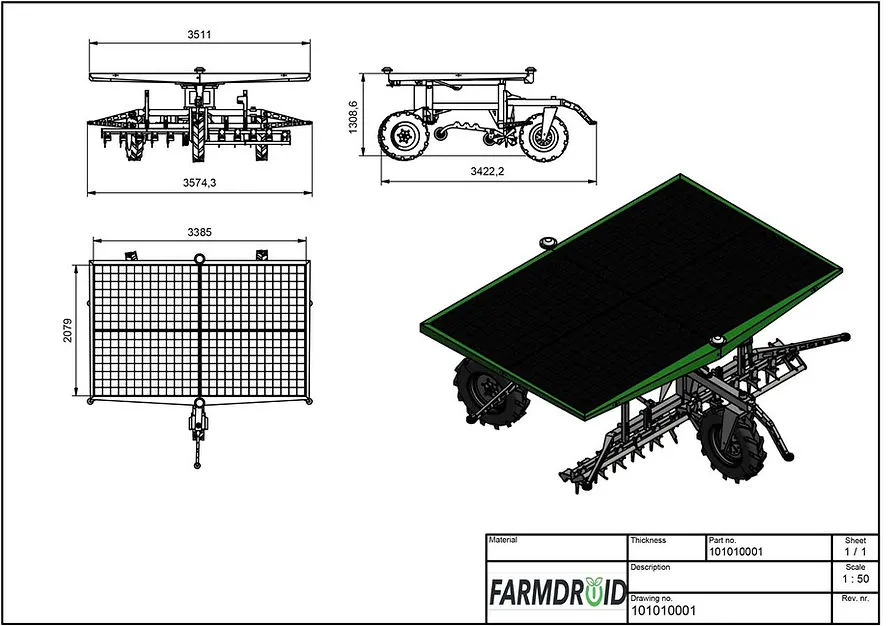

FarmDroid FD20 Dimensions

Farmdroid - Dimensions.jpg
